NZ30-01R

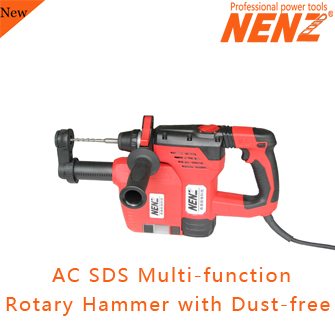

AC SDS-plus multi-function rotary hammer with dust collection

Features

•Best durability for the use life.
•Powerful 900W motor with 4J imapct energy.
•30mm (1-3/16')solid bits and 75mm(3') core bits drilling capacity in concrete.
•With removable chuck can drill the wood and steel plate(option).

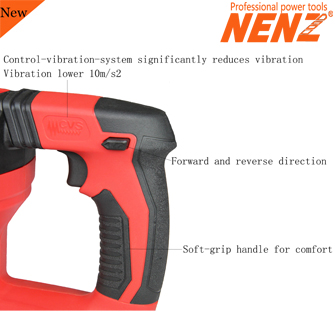

•CVS control-vibration system significantly reduces vibration for user comfort and safety, vibration lower 10m/s2.

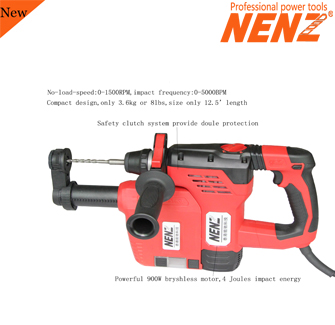

•Safety clutch system for user protection.

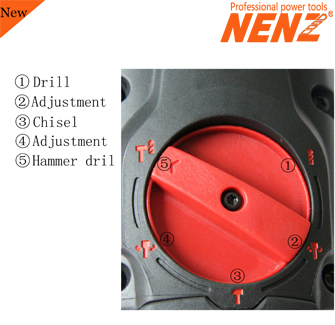

•Three functions, including hammer drill, drill and Chisel.
•With LED light function(option).
•Variable speed switch for speed control.
•Soft-grip handle and side handle for comfort.
•Compact design for the weight( 3.6kg or 7.9Ib) & size(12.5' length), easy to use.
•Fitting the dust clear system.
•Ensure the working environment clean and keep user healthy.
•Easy to install and carry out the dust clear as accessory.

NZ30-01R specifications

•Input voltage               :120/230 V 60/50 Hz
•Input power                :900W
•Max Nosie                   :95dB
•Max Vibration              :10m/s2
•No-load speed             :0-1500 RPM
•Impact frequency        :0-5000 BPM
•Borehole diameter        :30 mm (1-3/16')solid bit
•Borehole diameter        :75 mm (3')core bit
•Impact energy              :4.0 Joules
•Weight                          :2.9KG +0.7kg dust clear
•Volum                           :0.006 M³
•Power cord                  :2.4m with UL / GS plus
•Depth gauage               :Yes. steel bar
•Certificate                     :CE/CB/UL/CSA/CCC
•Dust clear system         :with
•Borehole diameter        :Dia6~16mm
•Drill depth:                    :0~85mm
•Suction                         :10 inH2O
•Dust box capacity          :30 holes by 10mm drill bits
•Packaging                    :Tool Bag&carton
